Application Areas and Pumped Liquids
Petroleum industry, power plants and chemical industry. Fuel oil, motorin, gasoline, LPG, lubricants, kerosene, etc.

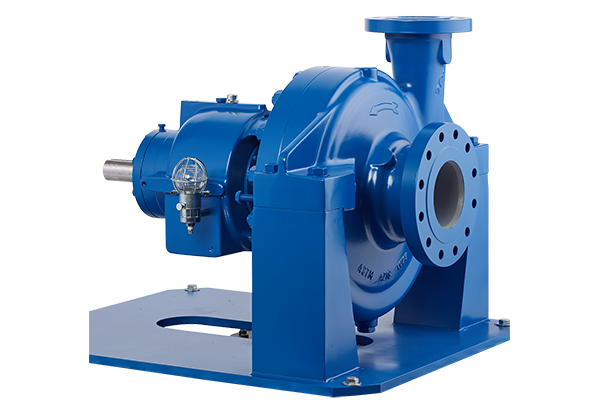

Design Features
- According to API 610 12th edition (ISO 13709).
- Center line volute casing design for high pressure and temperature.
- Tangential outlet design for high effciency at the volute casing.
- For special application double volute casing can be applied.
- Due to the back-pull-out design, the complete bearing assembly including impeller and casing cover can be dismantled without removing the volute casing from the pipe system. With spacer coupling application, also possible to take out the rotor group without dismantling the electric motor.
Technical Information
Discharge Flange NPS 1” - NPS 10”
Casing Pressure (Pmax) 51 bar
Operating Temperature (°C) up to +350 C
